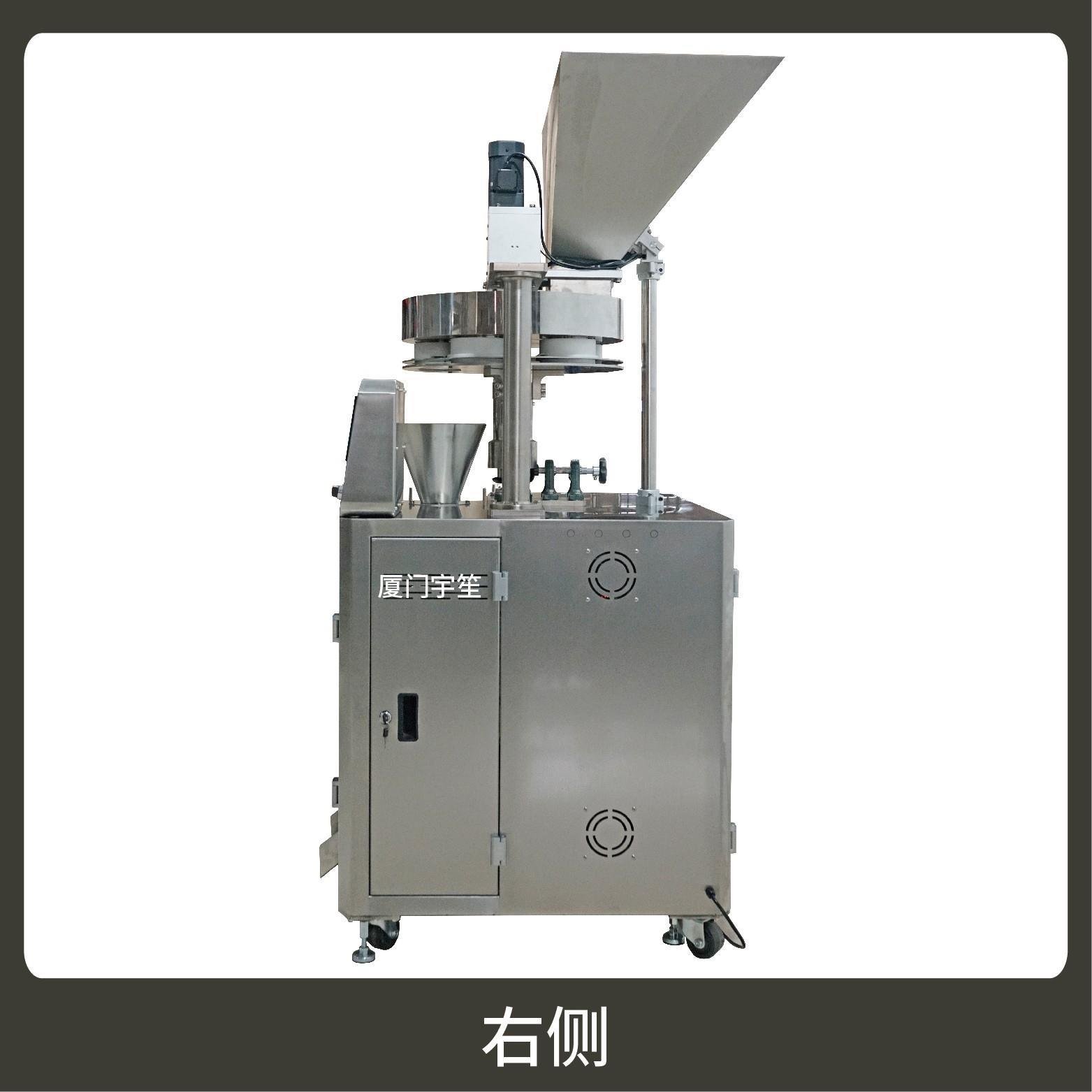

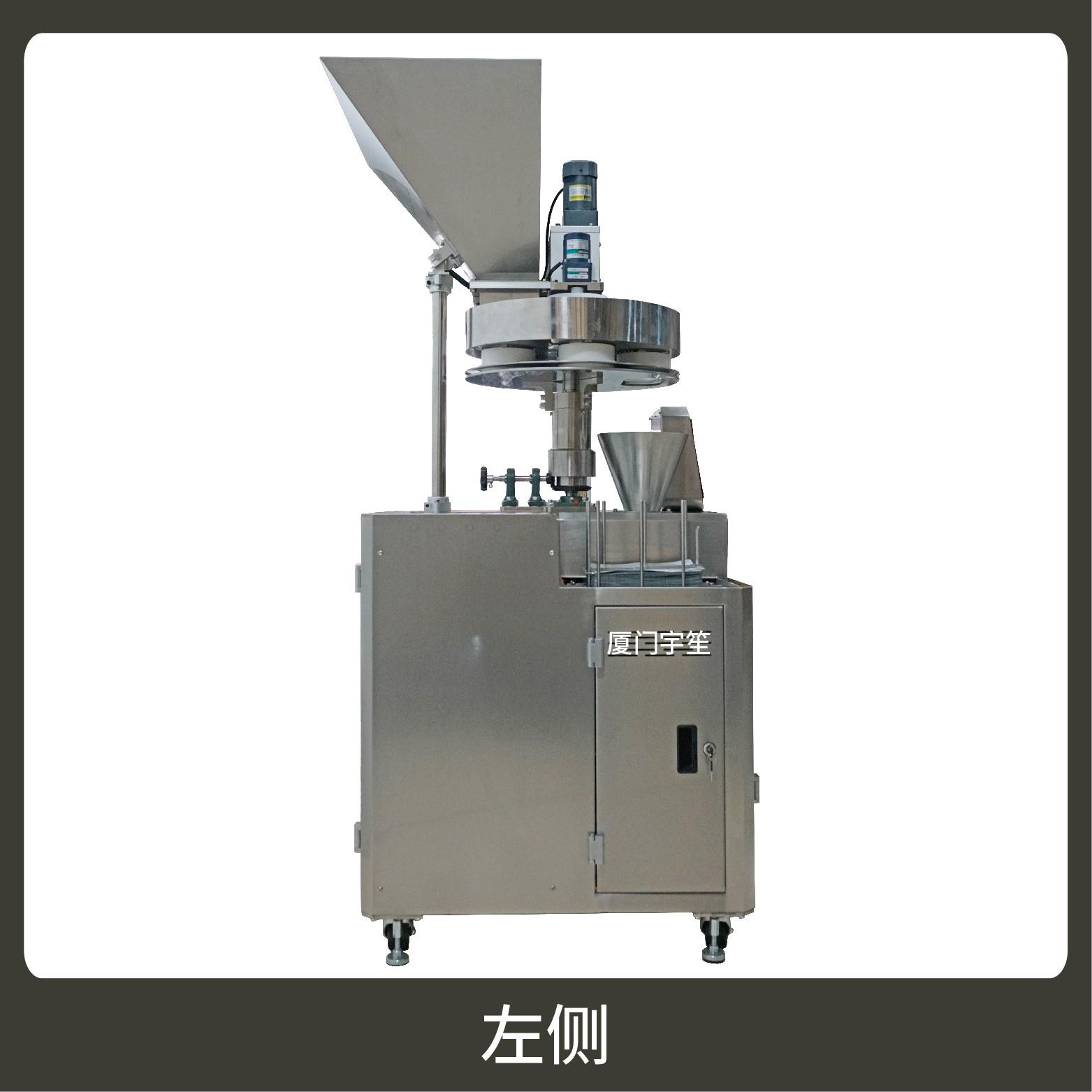

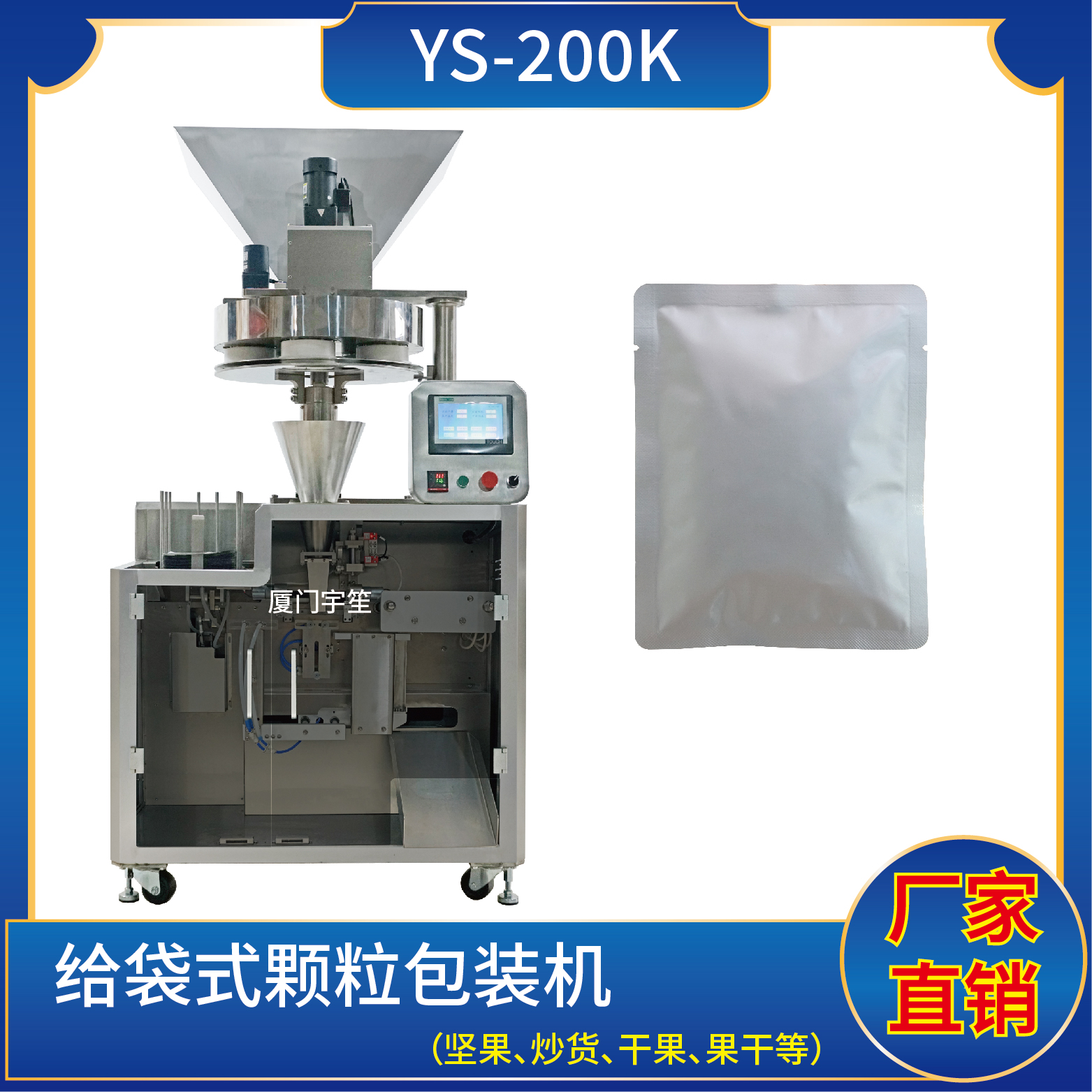

YS-SP200 給袋式顆粒包裝機
YS-SP200 Bag type particle packing machine(All electric)
YS-SP200 給袋式顆粒包裝機（全電動）
特 點 Characteristic
1、適用于各行業中顆粒物品的計量包裝，如：堅果、白糖、咖啡豆、果干、小米、種子、化肥等。
Suitable for the metering and packaging of granular items in various industries, such as nuts, white sugar, coffee beans, dried fruits, millet, seeds, and chemical fertilizers.

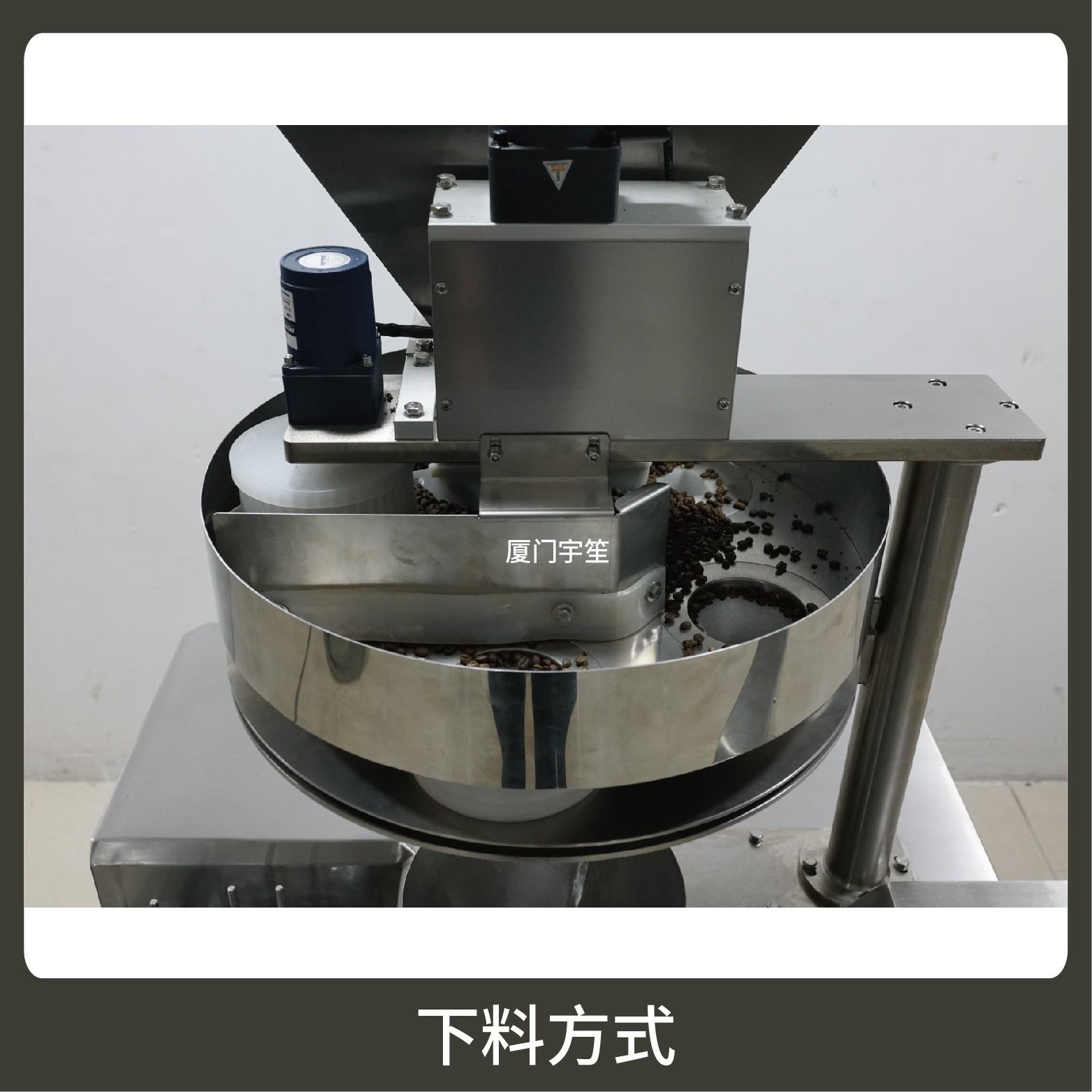

2、調試方便，占用空間小。包裝流程全自動，無需人工操作?？筛鶕?jù)充填物料的性質選配不同的下料結構。
Convenient debugging, small space. The packaging process is fully automatic without manual operation. Different feeding structures can be selected according to the nature of filling materials
3、采用觸摸屏操作，PLC控制，封口溫度自動補償，控溫精準，封口美觀大方。
It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packing material: composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.

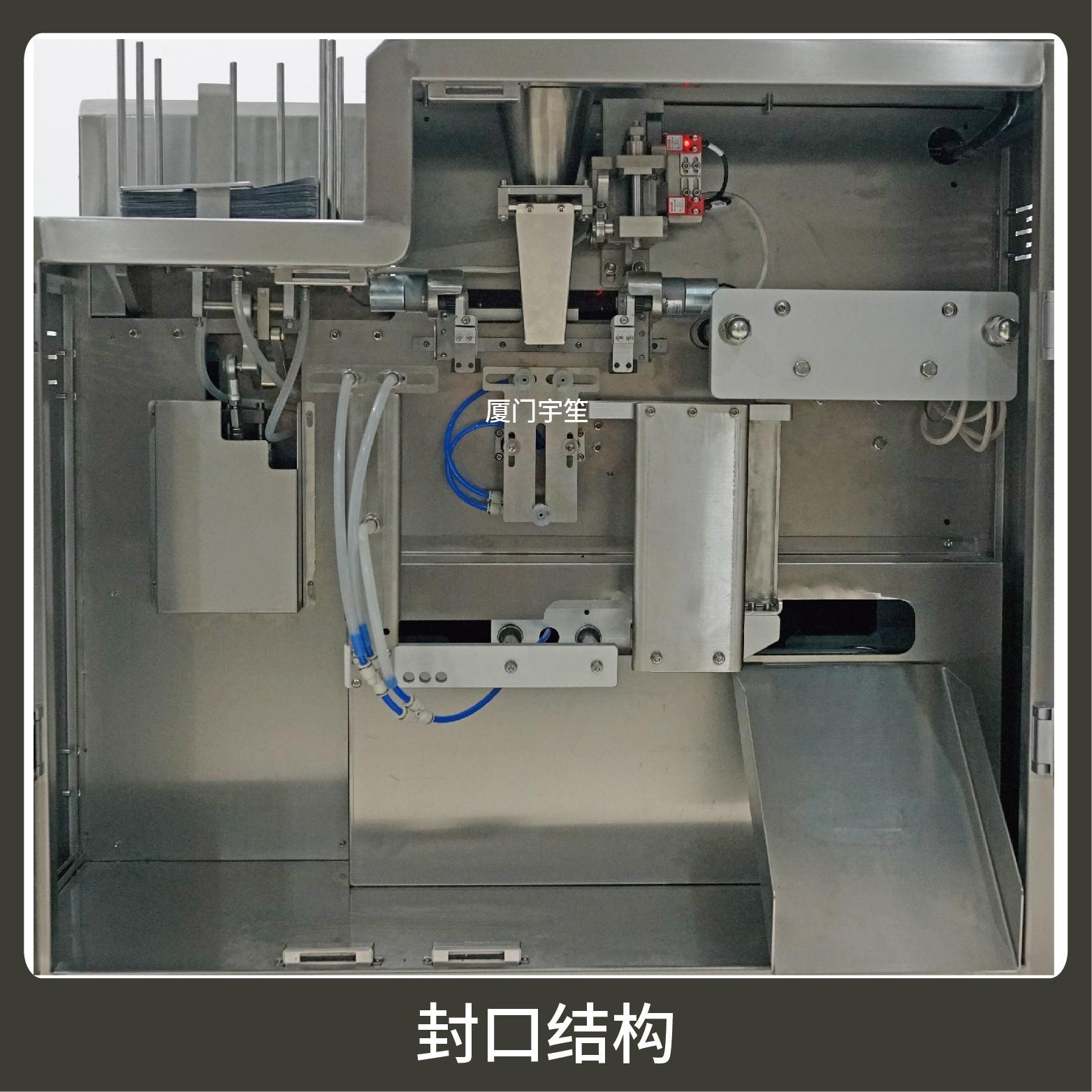

封口方式 Sealing Type
預制袋Prefab bag
技術參數Technical Parameters
計量范圍：200-1000g
Measuring Scope
預制袋（最大）：長 ( L ) ：300mm
Preformed bag(Max) 寬 ( W ) ：200mm
包裝速度：10 - 25bags / min
Packing Speed
外型尺寸：1091 * 926 * 1343 mm
Dimension ( L * W * H )
整機重量：365 kg
Weight
總 功 率：AC220V / 50 - 60Hz / 2kw
Total Power
1、適用于各行業中顆粒物品的計量包裝，如：堅果、白糖、咖啡豆、果干、小米、種子、化肥等。
Suitable for the metering and packaging of granular items in various industries, such as nuts, white sugar, coffee beans, dried fruits, millet, seeds, and chemical fertilizers.
2、調試方便，占用空間小。包裝流程全自動，無需人工操作。可根據充填物料的性質選配不同的下料結構。
Convenient debugging, small space. The packaging process is fully automatic without manual operation. Different feeding structures can be selected according to the nature of filling materials
3、采用觸摸屏操作，PLC控制，封口溫度自動補償，控溫精準，封口美觀大方。
It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packing material： composite film, such as： pure aluminum, aluminum plating and other prefabricated bags.
計量范圍：200-1000g
Measuring Scope
預制袋（最大）：長 ( L ) ：300mm
Preformed bag(Max) 寬 ( W ) ：200mm
包裝速度：10 - 25bags / min
Packing Speed
外型尺寸：1091 * 926 * 1343 mm
Dimension ( L * W * H )
整機重量：365 kg
Weight
總 功 率：AC220V / 50 - 60Hz / 2kw
Total Power
適用于各行業中顆粒物品的計量包裝，如：堅果、白糖、咖啡豆、果干、小米、種子、化肥等。
Suitable for the metering and packaging of granular items in various industries, such as nuts, white sugar, coffee beans, dried fruits, millet, seeds, and chemical fertilizers.
